HoopTech ICTCS 1 Clamping System

*IMPORTANT* MAKE SURE TO PUT YOUR MACHINE MAKE AND MODEL AND MACHINE ARM SPACING IN THE NOTES SECTION DURING CHECKOUT!! CLICK ADD TO CART SO YOU CAN LEAVE NOTES DO NOT CLICK BUY NOW WITH SHOP PAY!!!

*NOTE: Sold by Sew Unique Designz and Fulfilled by the Vendor. Item(s) will be shipped separately. ORDER SEPERATELY.  DOES NOT COUNT TOWARDS FREE SHIPPING ON OUR VINYL AND OTHER PRODUCTS SHIPPED BY US.

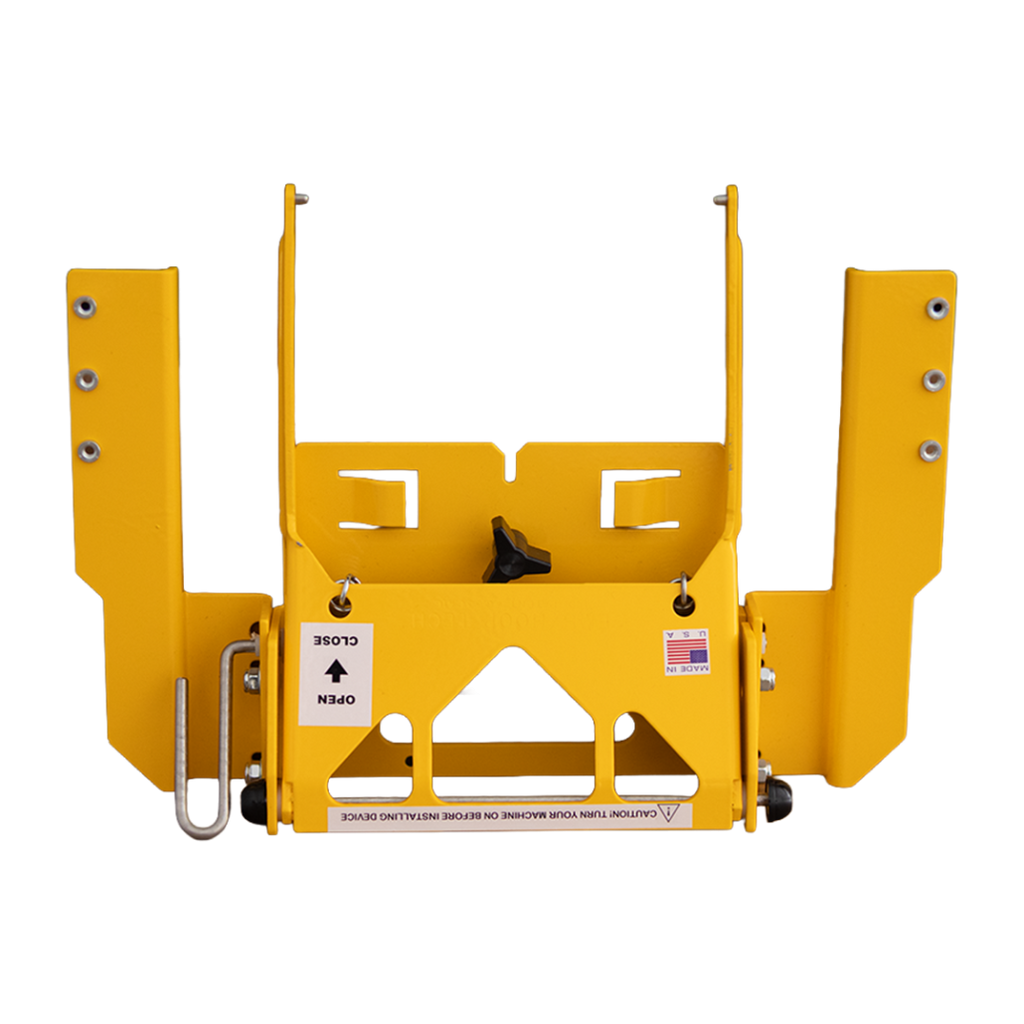

The ICTCS 1 Clamping System is built to make embroidery faster and easier without overcomplicating the process. A single lever opens, closes, and locks the clamp, and it automatically adjusts to different fabric thicknesses for a secure hold every time. It offers six interchangeable window sizes, making it easy to handle a wide range of embroidery applications. Made from all-metal, powder-coated aluminum and stainless steel, the ICTCS 1 is durable and built to last. It mounts directly to the machine’s existing hoop arms for quick install and removal, clamps without causing hoop burn, and cuts down on setup time.

The ICTCS 1 is $216.98 which includes the chassis and your machines specific adapter arms. Clamping windows are interchangeable and purchased separately. (Ranging from $80.99 to $98.99 per window)

NOTE: When you proceed to checkout, you’ll provide your machine make and model as well as your machine’s arm spacing. To find your arm spacing, measure from outside silver edge to outside silver edge of one of your machines existing plastic hoops. (Ex. a hoop measuring 14 inches = 360mm)

**THIS SYSTEM IS NOT COMPATIBLE WITH BROTHER PR, BABYLOCK OR MELCO MACHINES.

Don't forget to purchase your ICTCS 1 Windows!

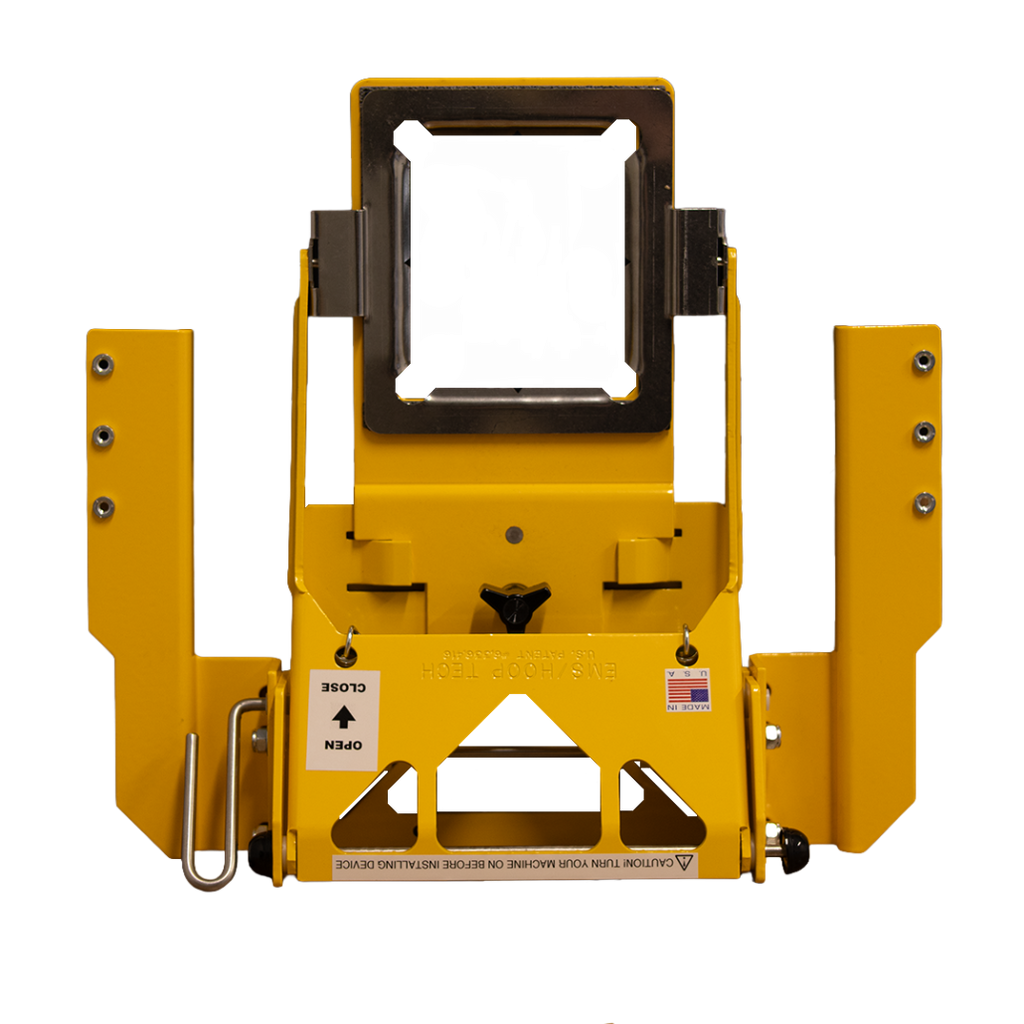

ICTCS 1 3.5″x4″ Window

Product Dimensions & Sew Field:

Inside Yellow Window: 3.5″x4″

Outside Yellow Window: 4.4″x4.9″

Estimated Sewing Area of Yellow Window: 3″x3.5″

Inside Silver Window: 3″x3.5″

Outside Silver Window: 4.4″x4.9″

Estimated Sewing Area of Silver Window: 2.5″x3″

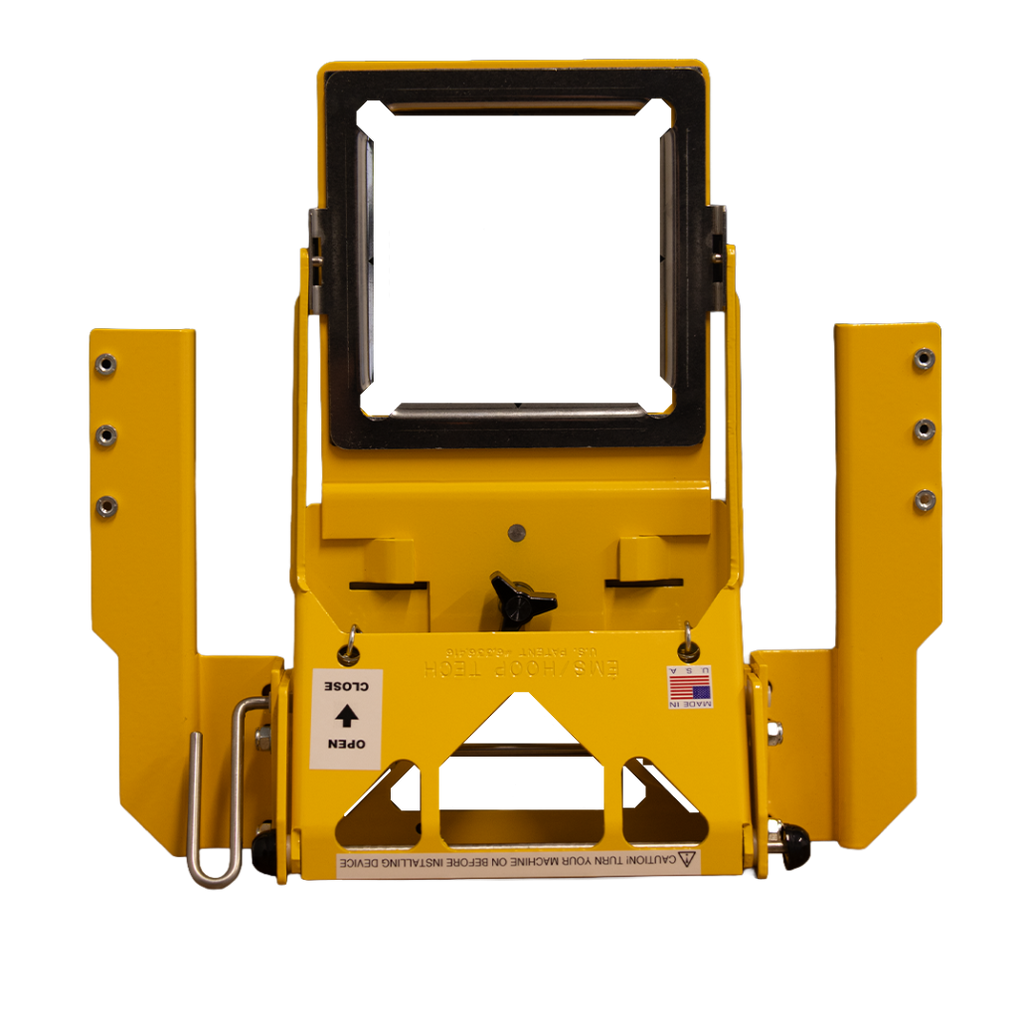

ICTCS 1 4.5″x4.5″ Window

Product Dimensions & Sew Field:

Inside Yellow Window: 5.5″ x 5.5″ Round

Outside Yellow Window: 6.5″ x 7″

Estimated Sewing Area of Yellow Window: 5″ x 5″ Round

Inside Silver Window: 5″ x 5″ Round

Outside Silver Window: 6.5″ x 7″

Estimated Sewing Area of Silver Window: 4.5″ x 4.5″ Round

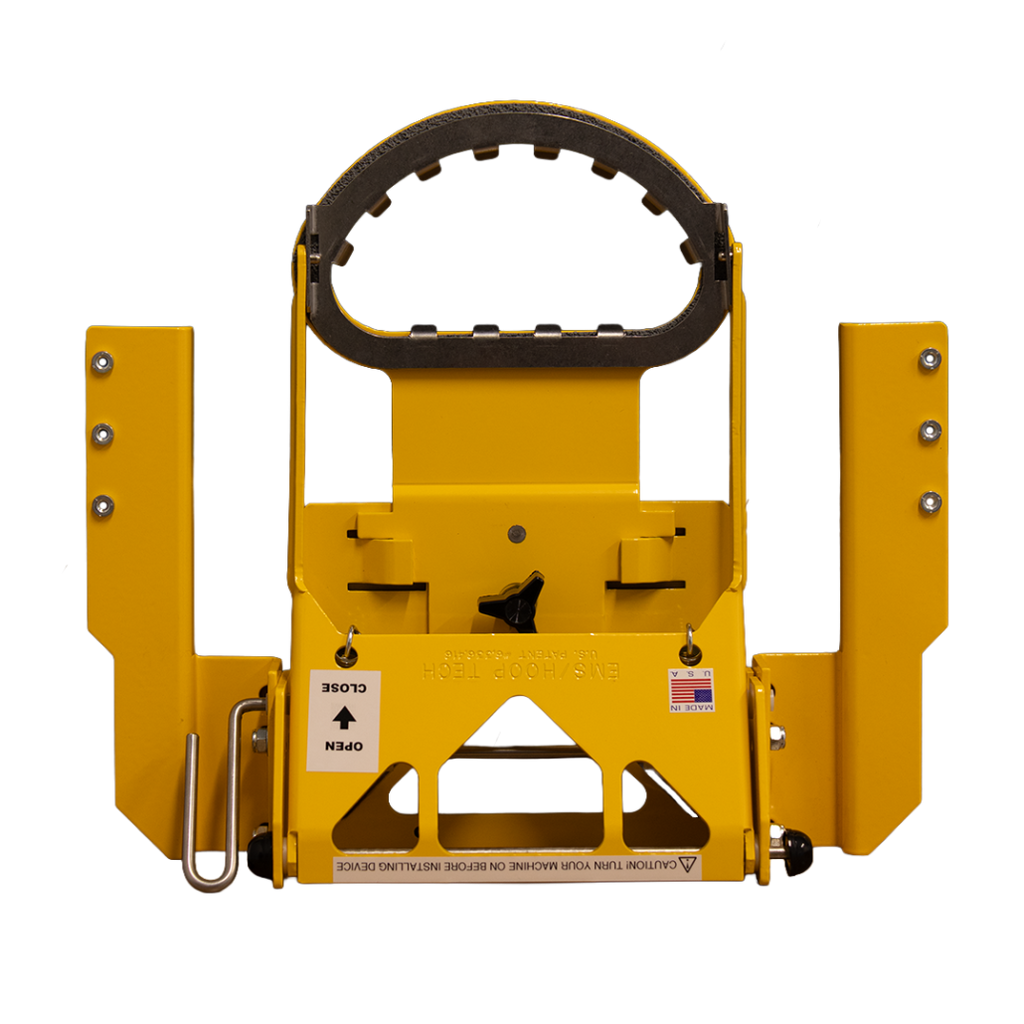

ICTCS 1 Hat Back Window

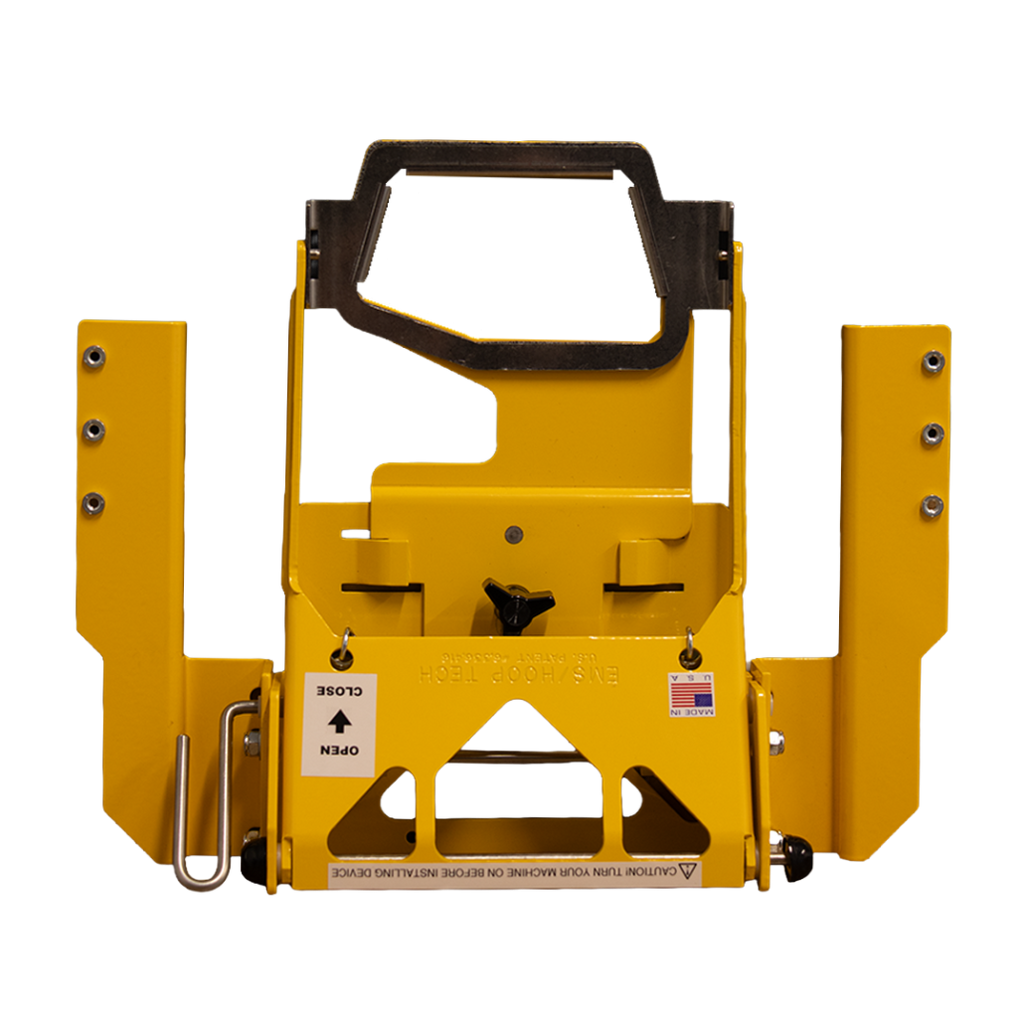

ICTCS 1 Hat Side Left Window

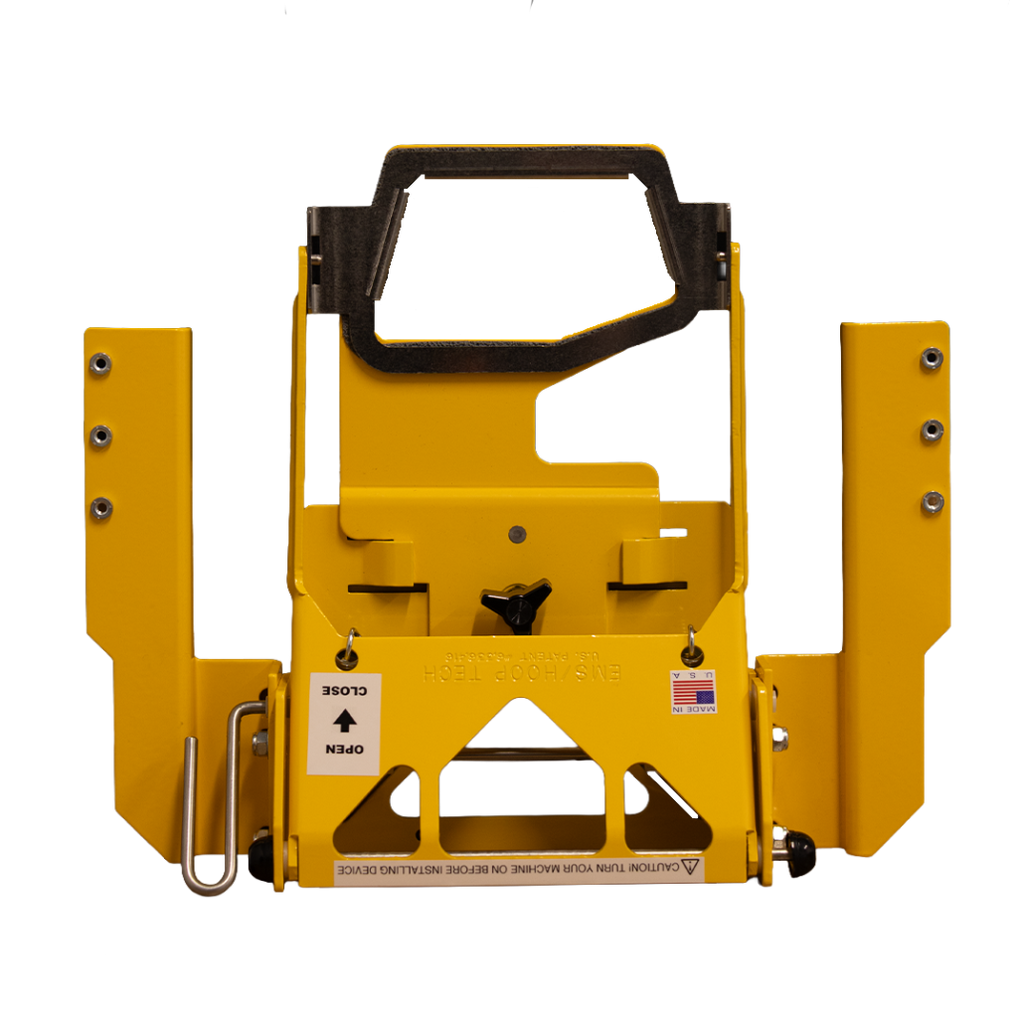

ICTCS 1 Hat Side Right Window

Product Dimensions & Sew Field:

Inside Silver Window: 3.8″x1.9″

Outside Silver Window: 4.4″x3.1″

Estimated Sewing Area of Yellow Window: 3.3″x1.4″
