Description
*IMPORTANT* MAKE SURE TO PUT YOUR MACHINE MAKE AND MODEL AND MACHINE ARM SPACING IN THE NOTES SECTION DURING CHECKOUT!! CLICK ADD TO CART SO YOU CAN LEAVE NOTES DO NOT CLICK BUY NOW WITH SHOP PAY!!!
*NOTE: Sold by Sew Unique Designz and Fulfilled by the Vendor. Item(s) will be shipped separately. ORDER SEPERATELY. DOES NOT COUNT TOWARDS FREE SHIPPING ON OUR VINYL AND OTHER PRODUCTS SHIPPED BY US.

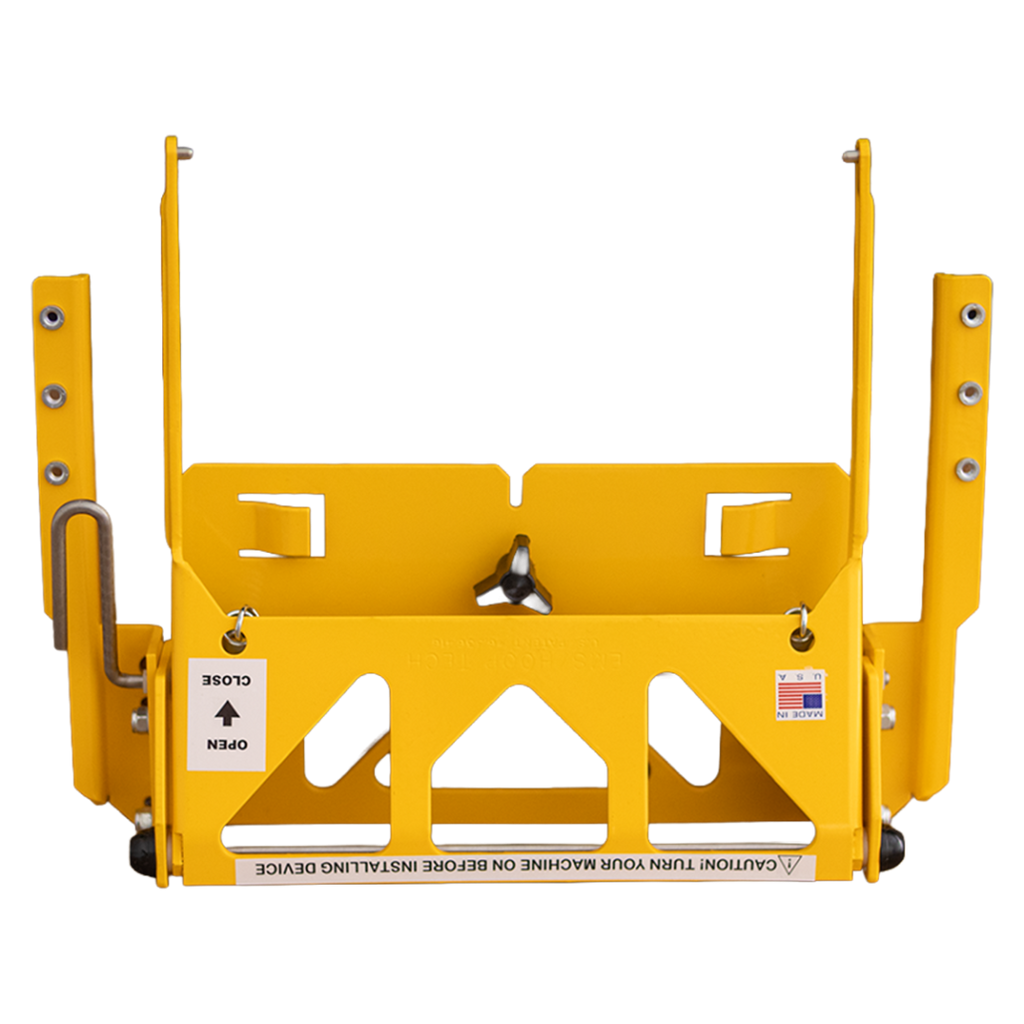

The ICTCS 2 Clamping System is built to make embroidery faster and easier without overcomplicating the process. A single lever opens, closes, and locks the clamp, and it automatically adjusts to different fabric thicknesses for a secure hold every time. As the larger of the two systems, the ICTCS 2 offers seven window size options, giving you more coverage and flexibility for larger embroidery applications. This makes it ideal for items like sports bags, totes, computer bags, blankets, jackets, and backpacks, and it also allows you to embroider the back of hats using the 5.5″ round window set.
Made from all-metal, powder-coated aluminum and stainless steel, the ICTCS 2 is durable and built to last. It mounts directly to the machine’s existing hoop arms for quick installation and removal, clamps without causing hoop burn, and reduces setup time.
NOTE: The ICTCS 2 is $337.98 which includes the chassis and your machines specific adapter arms. Clamping windows are interchangeable and purchased separately. ($142.99 per window)
***IMPORTANT When you proceed to checkout, you’ll provide your machine make and model as well as your machine’s arm spacing. To find your arm spacing, measure from outside silver edge to outside silver edge of one of your machines existing plastic hoops. (Ex. a hoop measuring 14 inches = 360mm)
THIS SYSTEM IS NOT COMPATIBLE WITH BROTHER PR, BABYLOCK OR MELCO MACHINES.
Don't forget to purchase your ICTCS 2 Windows!

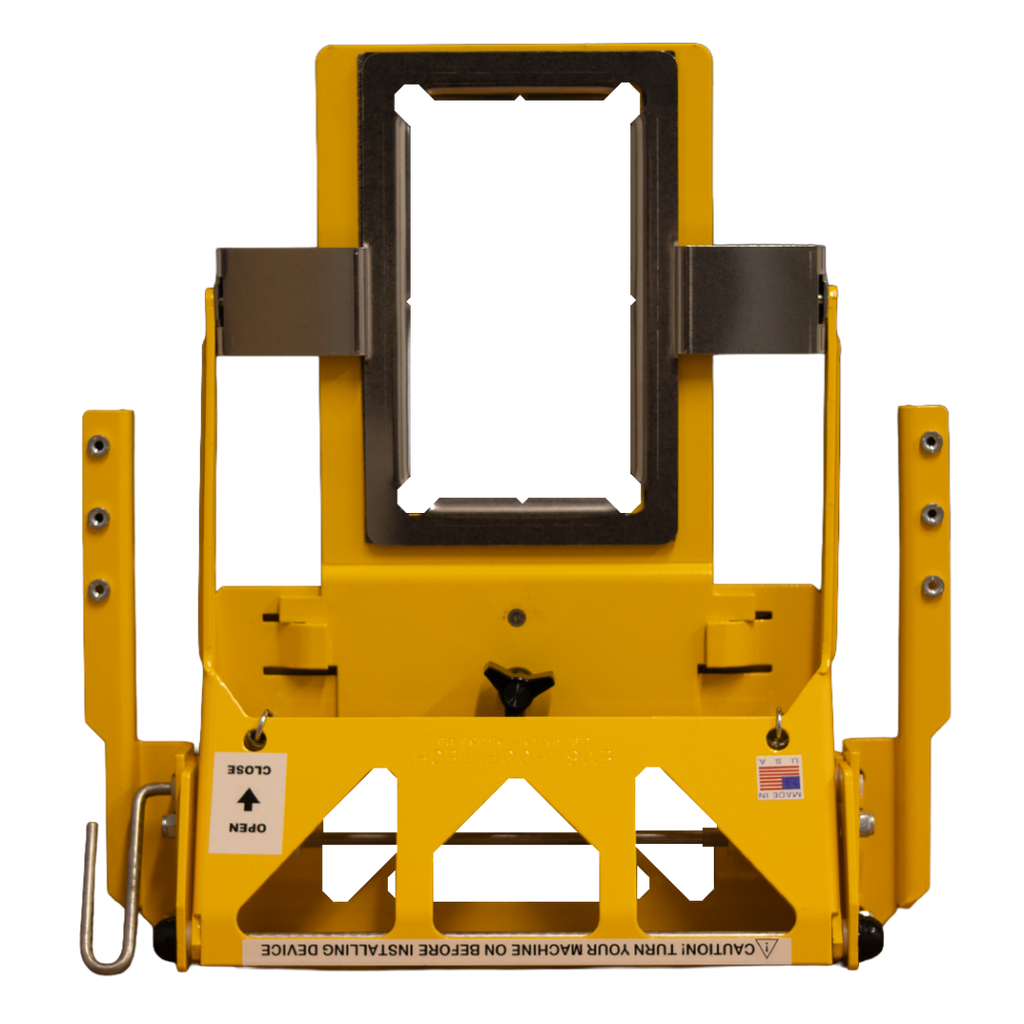

ICTCS 2 - 3.5″x6″ Window
Product Dimensions & Sew Field:
Outside Yellow Window: 5.5″ x 7.5"
Estimated Sewing Area of Yellow Window: 3″ x 5.5″
Inside Silver Window: 3″ x 5.5″
Outside Silver Window: 5.5″ x 7.5″
Estimated Sewing Area of Silver Window: 2.5″ x 5″

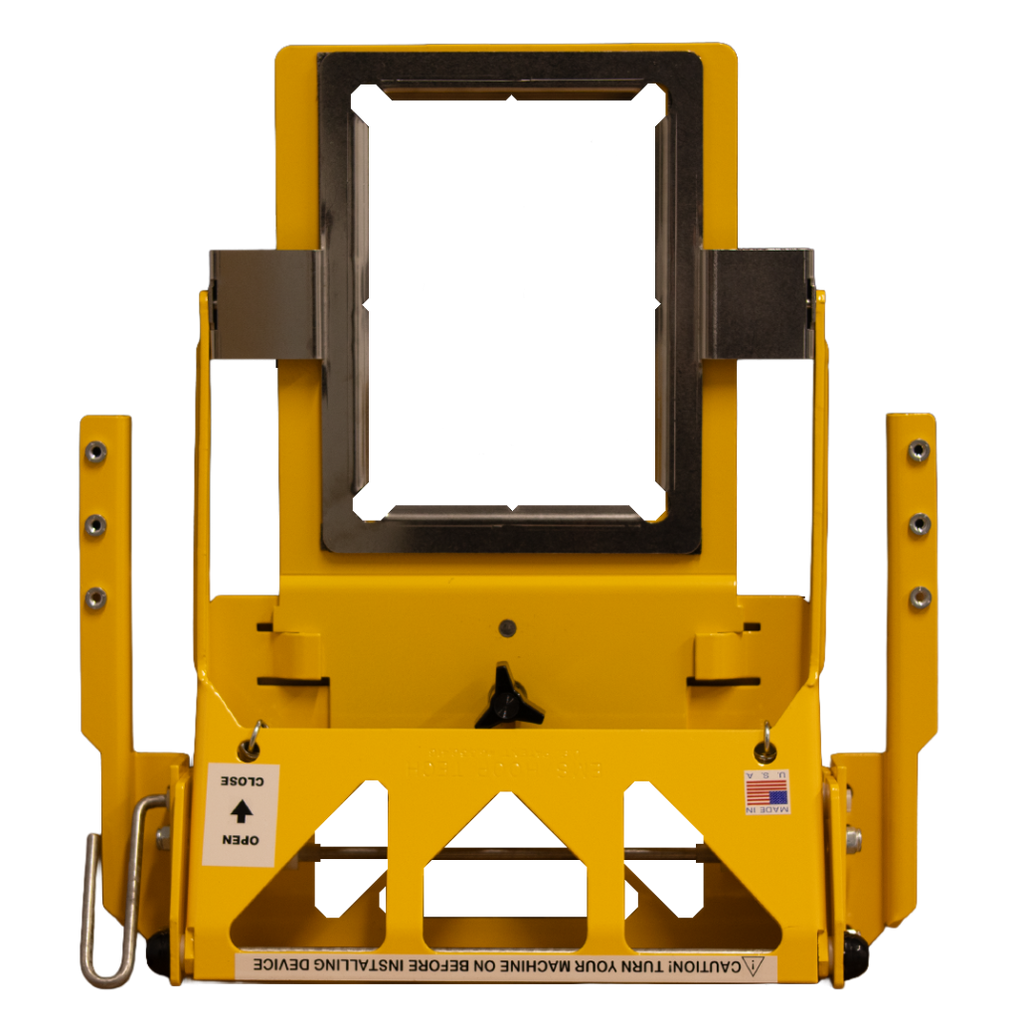

ICTCS 2 - 4.5″x6″ Window
Product Dimensions & Sew Field:
Inside Yellow Window: 3.5″ x 6″
Outside Yellow Window: 5.5″ x 7.5″
Estimated Sewing Area of Yellow Window: 3″ x 5.5″
Inside Silver Window: 3″ x 5.5″
Outside Silver Window: 5.5″ x 7.5″
Estimated Sewing Area of Silver Window: 2.5″ x 5″

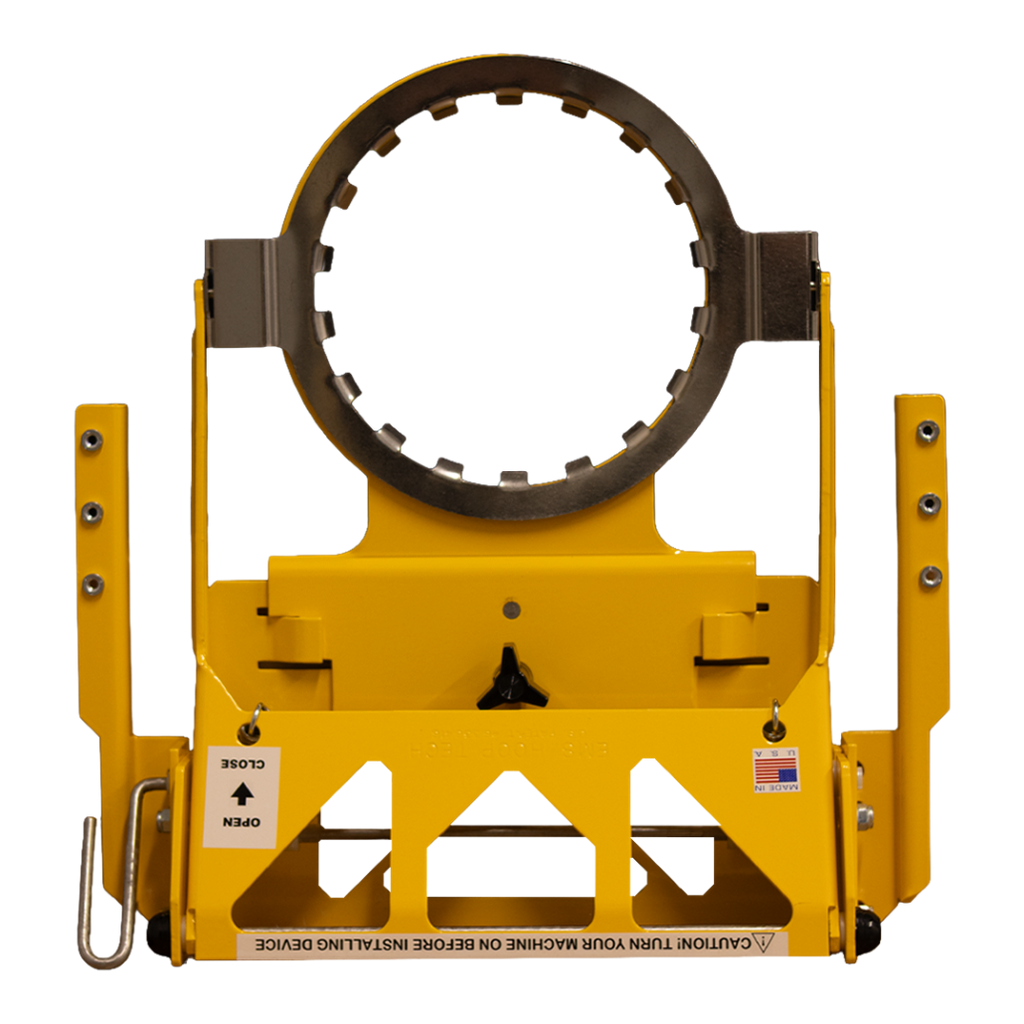

ICTCS 2 - 5.5″ Round Window
Product Dimensions & Sew Field:
Inside Yellow Window: 5.5″ x 5.5″ Round
Outside Yellow Window: 6.5″ x 7″
Estimated Sewing Area of Yellow Window: 5″ x 5″ Round
Inside Silver Window: 5″ x 5″ Round
Outside Silver Window: 6.5″ x 7″
Estimated Sewing Area of Silver Window: 4.5″ x 4.5″ Round

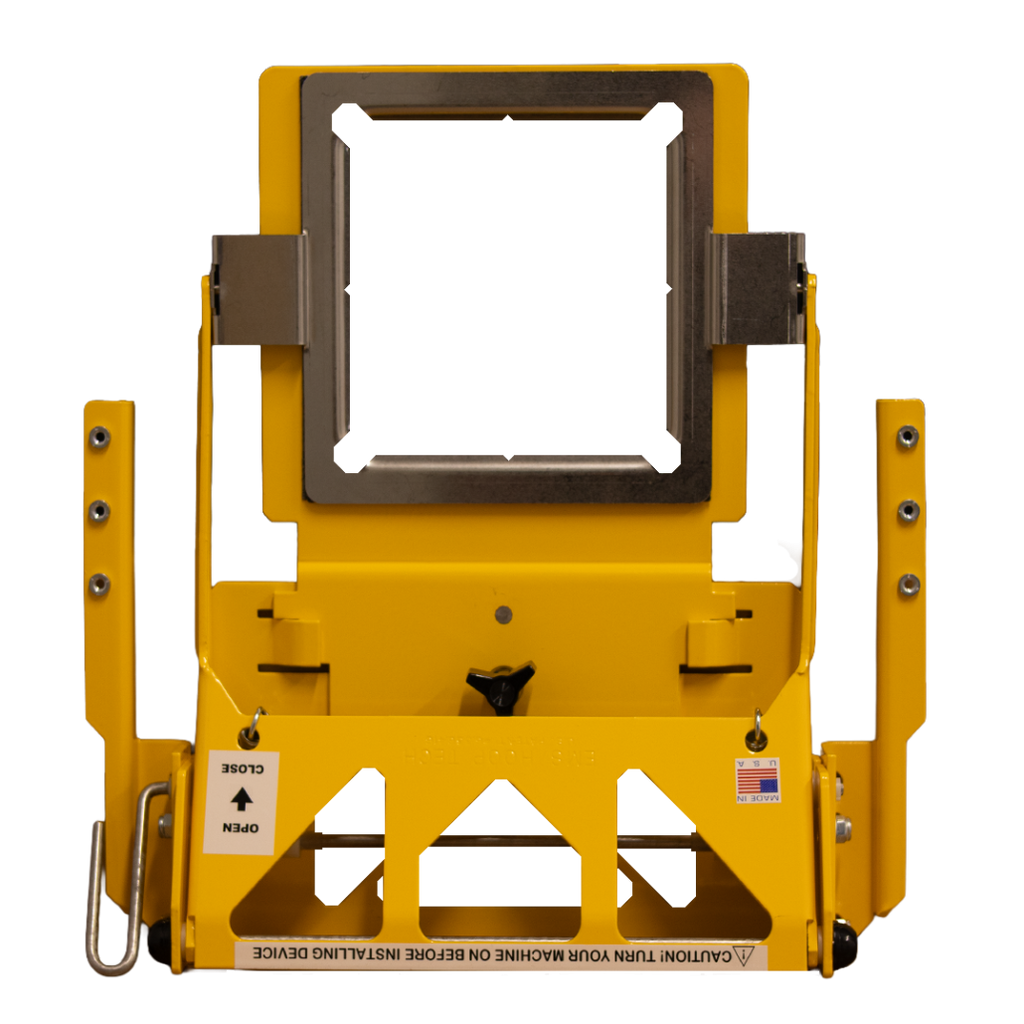

ICTCS 2 - 5″x5″ Window
Product Dimensions & Sew Field:
Inside Yellow Window: 5″ x 5″
Outside Yellow Window: 7″ x 7″
Estimated Sewing Area of Yellow Window: 4.5″ x 4.5″
Inside Silver Window: 4.5″ x 4.5″
Outside Silver Window: 7″ x 7″
Estimated Sewing Area of Silver Window: 4″ x 4″

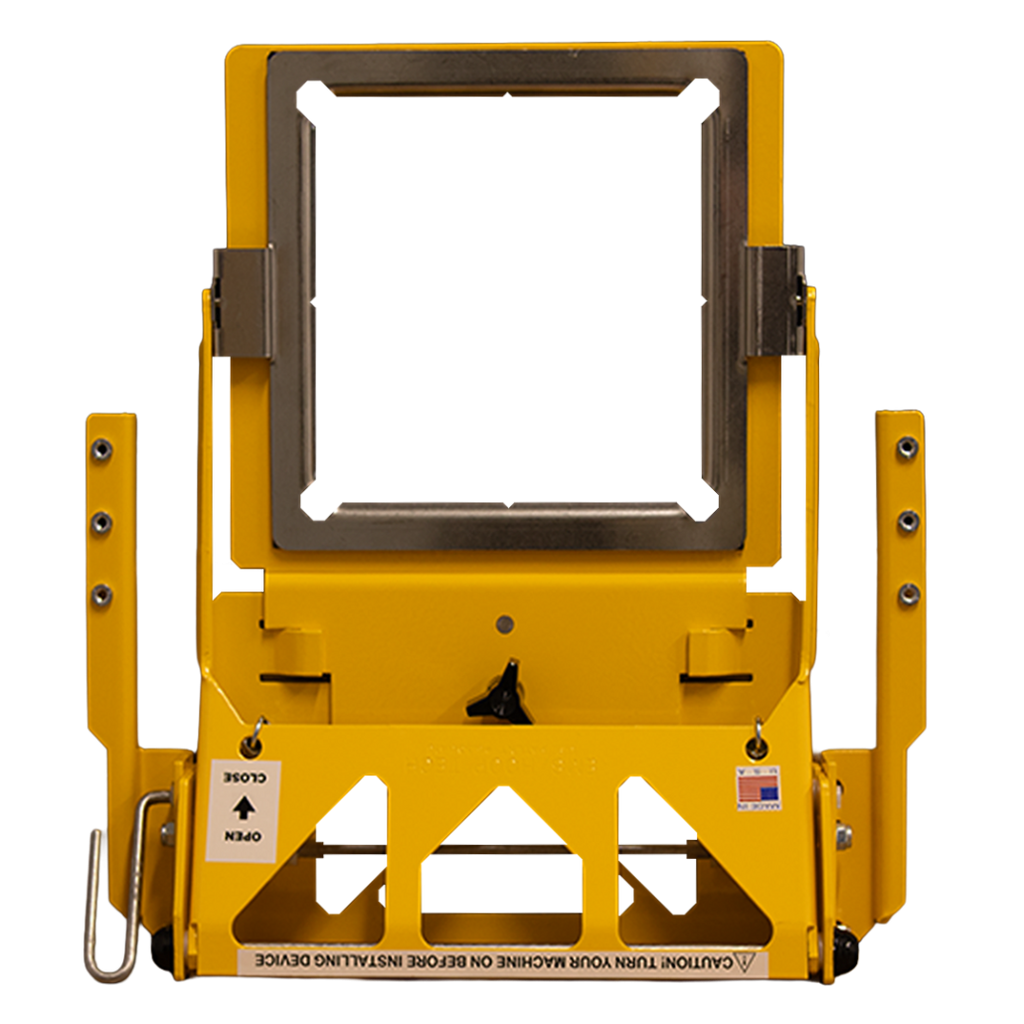

ICTCS 2 - 6″x6″ Window
Product Dimensions & Sew Field:
Inside Yellow Window: 6″ x 6″
Outside Yellow Window: 8″ x 7.4″
Estimated Sewing Area of Yellow Window: 5.5″ x 5.5″
Inside Silver Window: 5.5″ x 5.5″
Outside Silver Window: 8″ x 7.4″
Estimated Sewing Area of Silver Window: 5″ x 5″

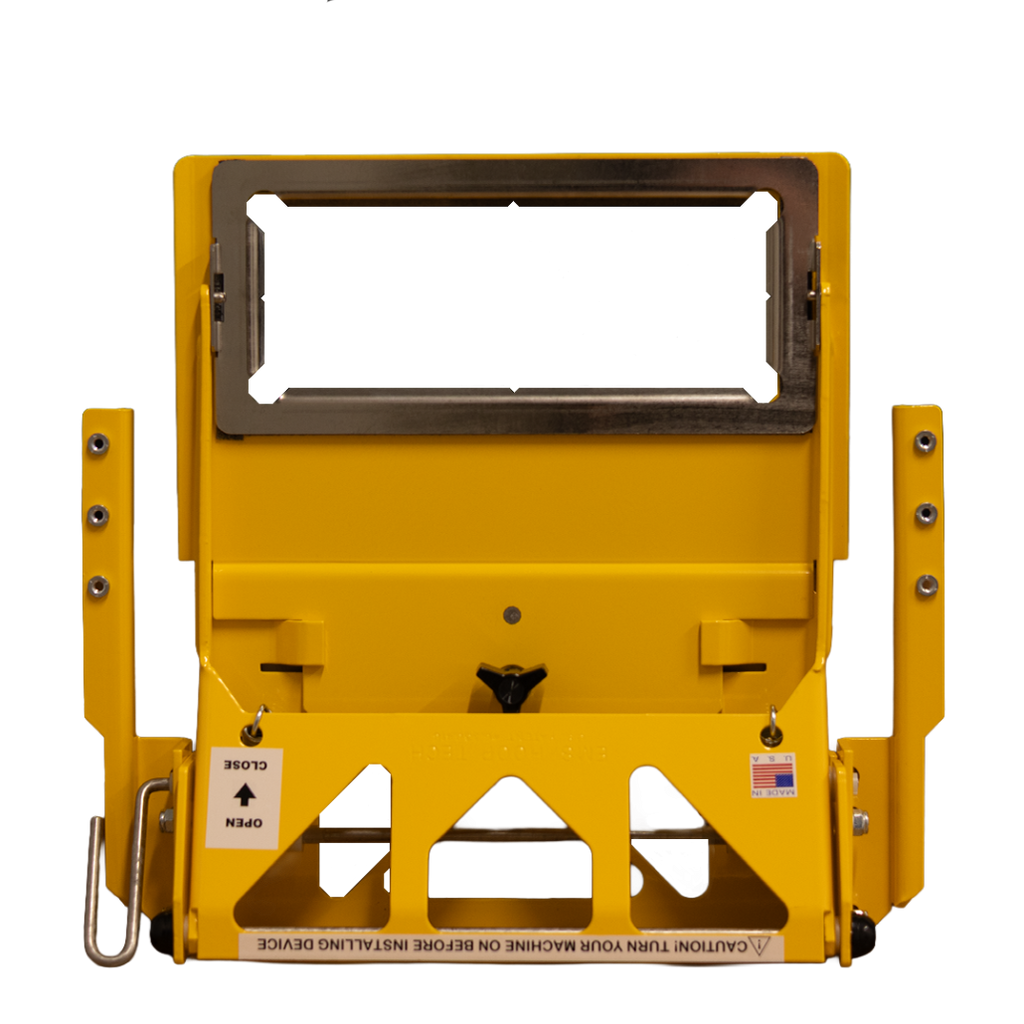

ICTCS 2 - 7.5″x3″ Window
Product Dimensions & Sew Field:
Inside Yellow Window: 7.5″ x 3″
Outside Yellow Window: 9.5″ x 5.75″
Estimated Sewing Area of Yellow Window: 7″ x 3″
Inside Silver Window: 7″ x 2.5″
Outside Silver Window: 9.5″ x 5.75″
Estimated Sewing Area of Silver Window: 6.5″ x 2″

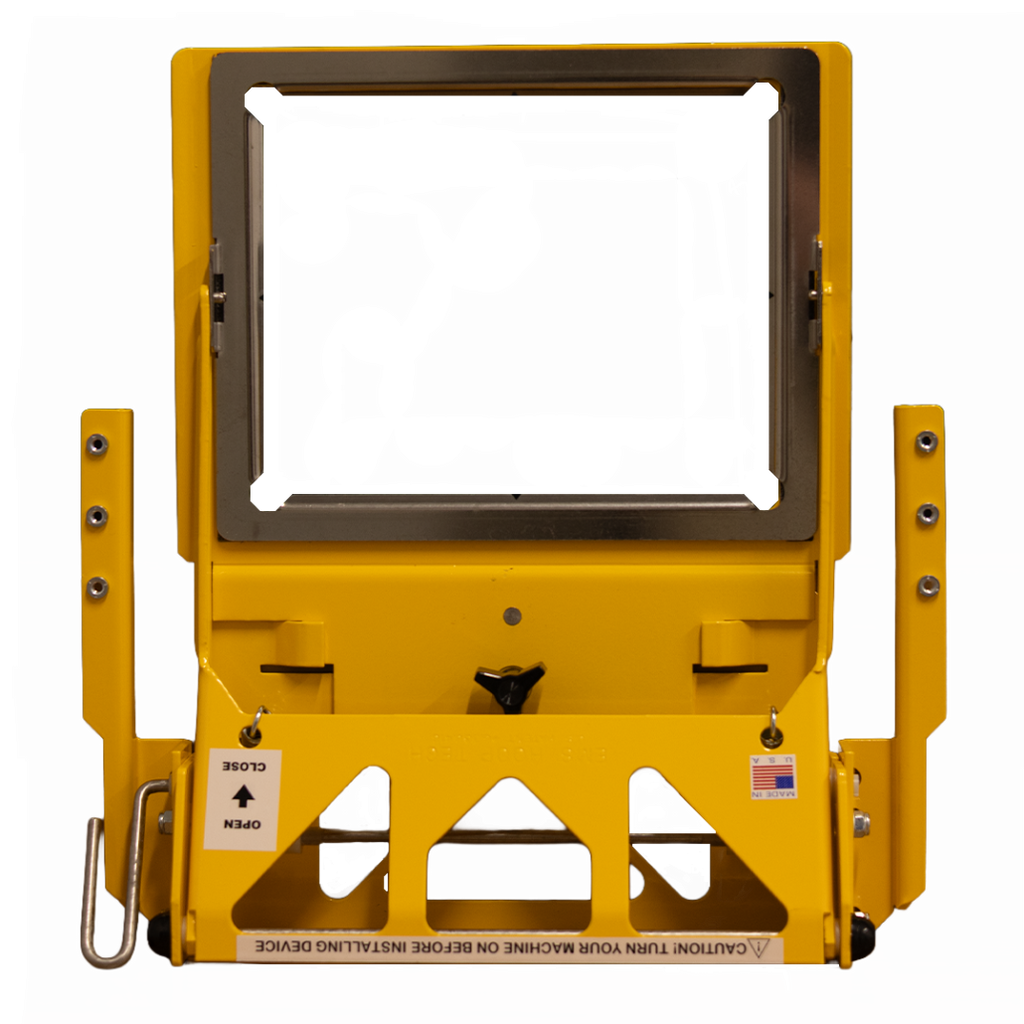

ICTCS 2 - 7.5″x6″ Window
Product Dimensions & Sew Field:
Inside Yellow Window: 7.5″ x 6″
Outside Yellow Window: 9.5″ x 7.4″
Estimated Sewing Area of Yellow Window: 7″ x 5.5″
Inside Silver Window: 7″ x 5.5″
Outside Silver Window: 9.5″ x 7.4″
Estimated Sewing Area of Silver Window: 6.5″ x 5″
